Plot Simulated Tracks

Source: R/plot_sim.R
plot_sim.Rd

plot_sim() creates a plot that visualizes both simulated and actual movement trajectories. This function is useful for comparing the simulated tracks generated by simulate_track() with the observed trajectories to evaluate how well the simulation models represent real movement patterns.

Usage

plot_sim(
  data,
  sim,
  colours_sim = NULL,
  alpha_sim = NULL,
  lwd_sim = NULL,
  colours_act = NULL,
  alpha_act = NULL,
  lwd_act = NULL
)

Arguments

data

A track R object, which is a list consisting of two elements:

  • Trajectories: A list of interpolated trajectories, where each trajectory is a series of midpoints between consecutive footprints.

  • Footprints: A list of data frames containing footprint coordinates, metadata (e.g., image reference, ID), and a marker indicating whether the footprint is actual or inferred.

sim

A track simulation R object, where each object is a list of simulated trajectories stored as track R objects.

colours_sim

A vector of colors for plotting each set of simulated trajectories. If NULL, the default color will be black ("#000000").

alpha_sim

A numeric value between 0 and 1 for the transparency level of simulated trajectories. The default is 0.1.

lwd_sim

A numeric value for the line width of the simulated trajectory lines. The default is 0.5.

colours_act

A vector of colors for plotting actual trajectories. If NULL, the default color will be black ("#000000").

alpha_act

A numeric value between 0 and 1 for the transparency level of actual trajectories. The default is 0.6.

lwd_act

A numeric value for the line width of the actual trajectory lines. The default is 0.8.

Value

A ggplot object displaying the simulated and actual trajectories.

Details

The function uses ggplot2 to create a plot with the following components:

  • Simulated trajectories are displayed with paths colored according to the colours_sim parameter, with the specified transparency alpha_sim and line width lwd_sim.

  • Actual trajectories are overlaid in the colors specified by colours_act, with a transparency level alpha_act and line width lwd_act to provide a clear comparison.

See also

tps_to_track, simulate_track

Author

Humberto G. Ferrón

humberto.ferron@uv.es

Macroevolution and Functional Morphology Research Group (www.macrofun.es)

Cavanilles Institute of Biodiversity and Evolutionary Biology

Calle Catedrático José Beltrán Martínez, nº 2

46980 Paterna - Valencia - Spain

Phone: +34 (9635) 44477

Examples

# Example 1: Simulate tracks using data from the Paluxy River
# Default model (Unconstrained movement)
simulated_tracks <- simulate_track(PaluxyRiver, nsim = 3)
#> Warning: `model` is NULL. Defaulting to 'Unconstrained'.

# Plot simulated tracks with default settings and actual tracks

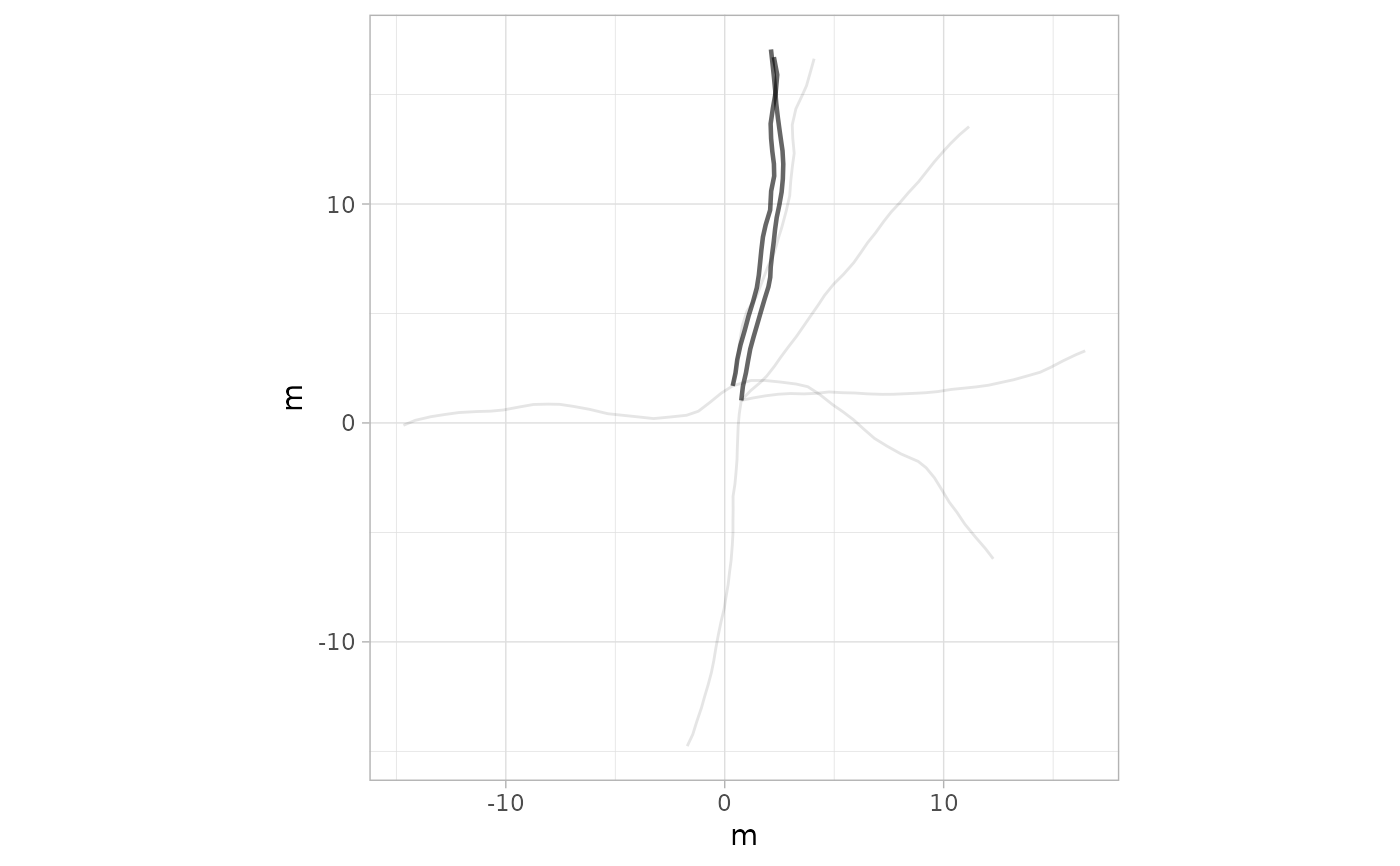

plot_sim(PaluxyRiver, simulated_tracks)


# Example 2: Simulate tracks using the "Directed" model, representing movement toward a
# resource
simulated_tracks_directed <- simulate_track(PaluxyRiver, nsim = 3, model = "Directed")

# Plot simulated tracks with specific colors and transparency for "Directed" model

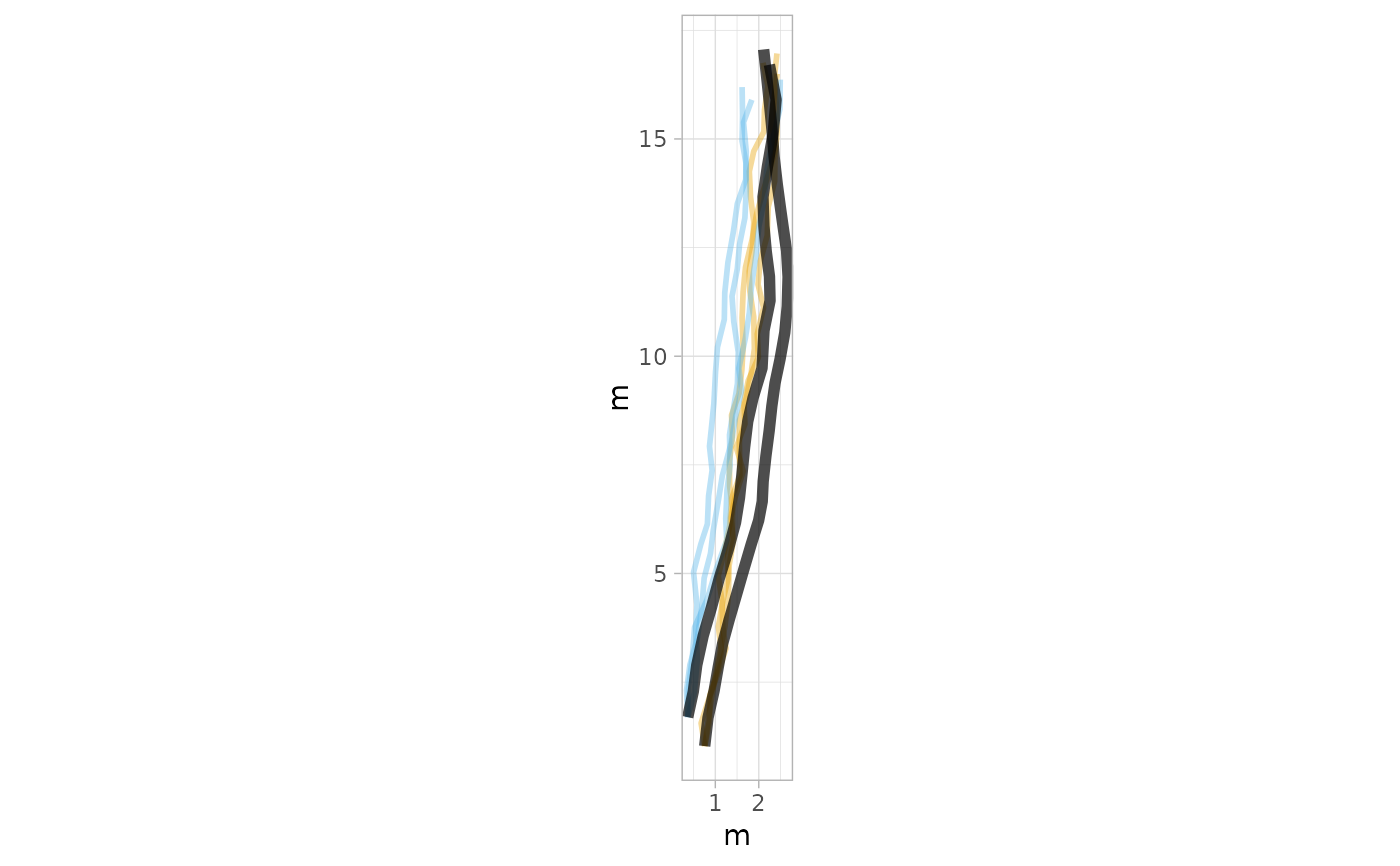

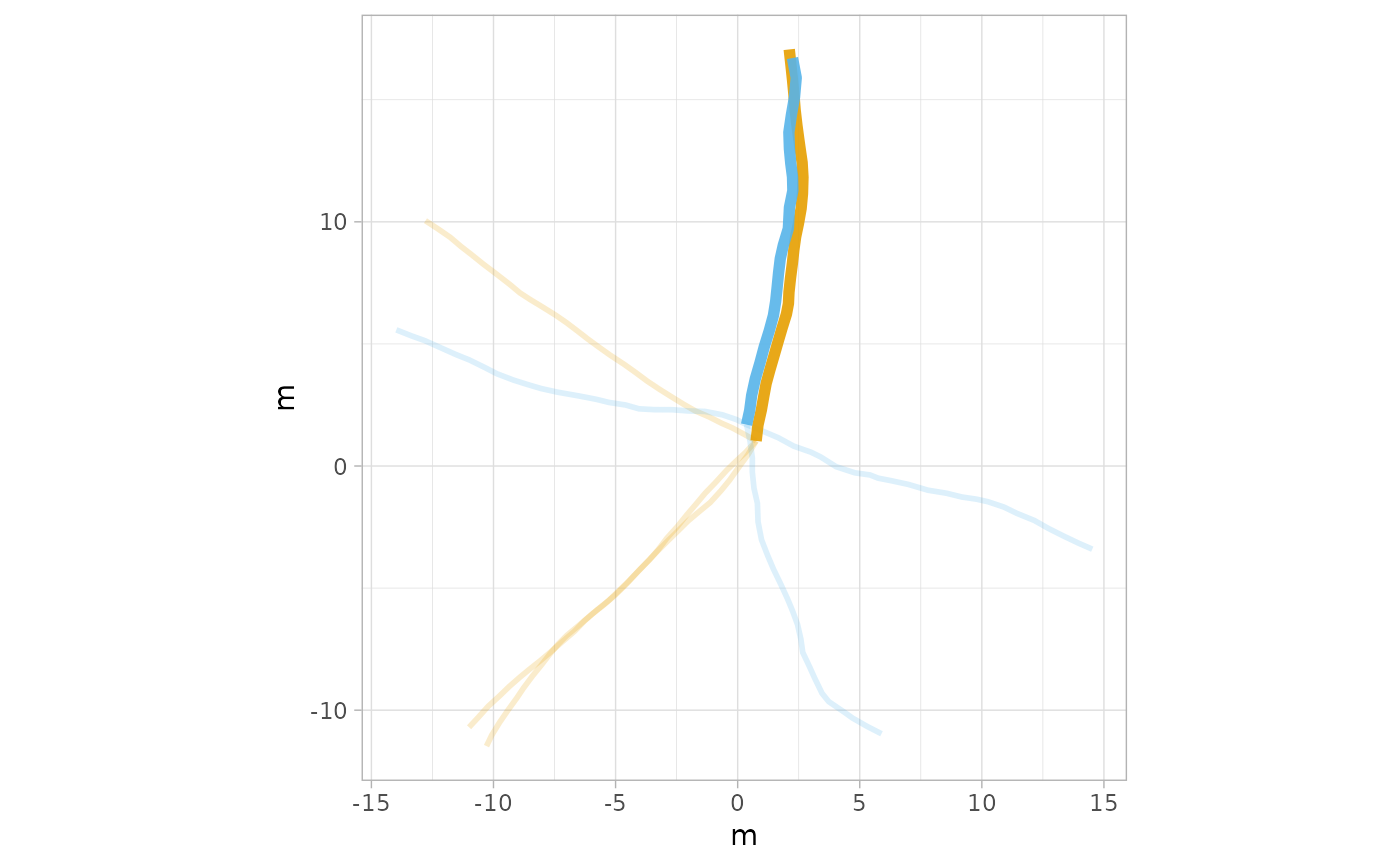

plot_sim(PaluxyRiver, simulated_tracks_directed,
  colours_sim = c("#E69F00", "#56B4E9"),
  alpha_sim = 0.4, lwd_sim = 1, colours_act = c("black", "black"), alpha_act = 0.7,
  lwd_act = 2
)


# Example 3: Simulate tracks using the "Constrained" model, representing movement along
# a feature
simulated_tracks_constrained <- simulate_track(PaluxyRiver, nsim = 3, model = "Constrained")

# Plot simulated tracks with a different color scheme and width for "Constrained" model

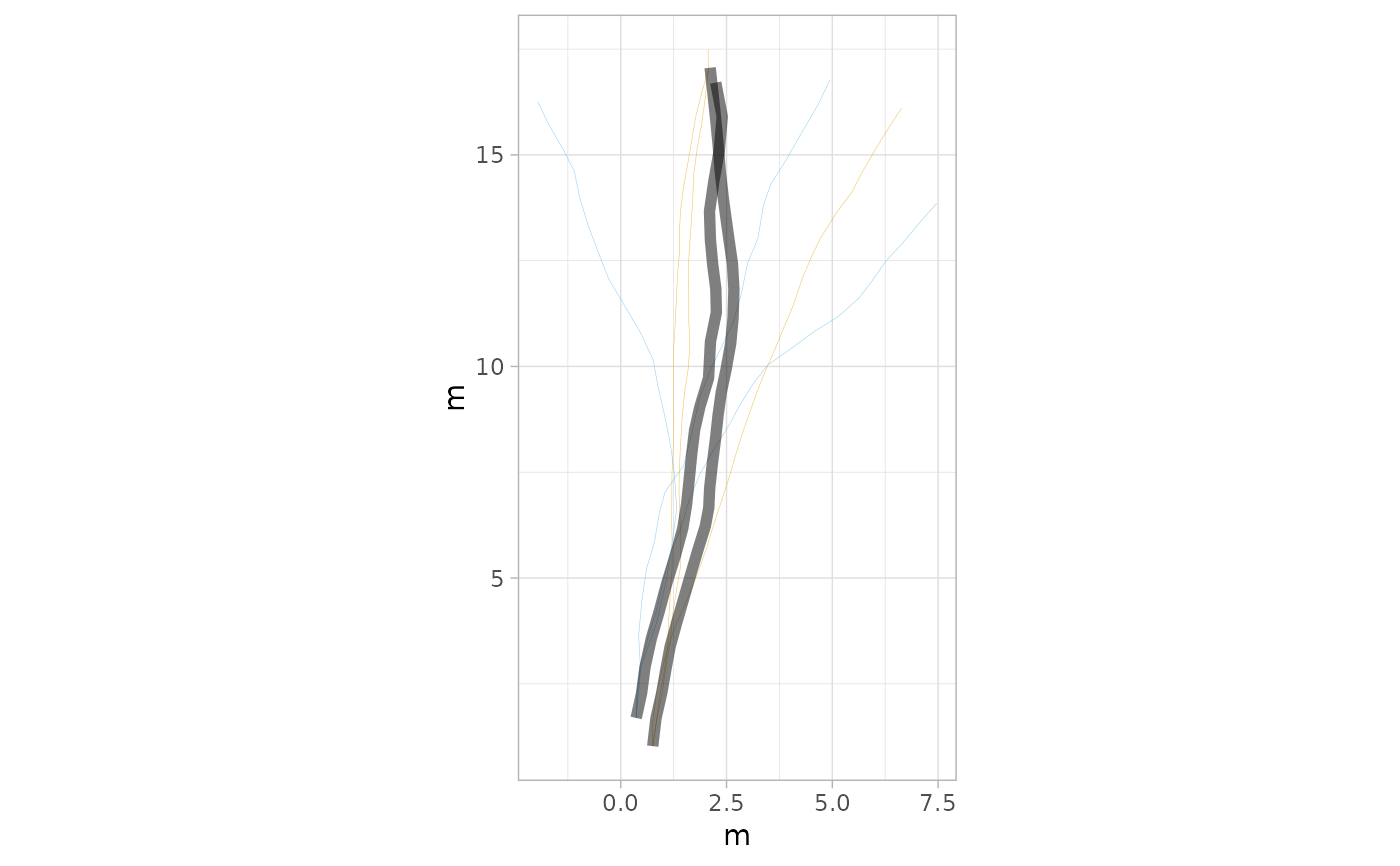

plot_sim(PaluxyRiver, simulated_tracks_constrained,
  colours_sim = c("#E69F00", "#56B4E9"),
  alpha_sim = 0.6, lwd_sim = 0.1, alpha_act = 0.5, lwd_act = 2
)


# Example 4: Simulate tracks using the "Unconstrained" model (random exploratory
# movement)
simulated_tracks_unconstrained <- simulate_track(PaluxyRiver, nsim = 3, model = "Unconstrained")

# Plot simulated tracks with default colors and increased transparency for "Unconstrained"
# model
plot_sim(PaluxyRiver, simulated_tracks_unconstrained,
  colours_sim = c("#E69F00", "#56B4E9"),
  alpha_sim = 0.2, lwd_sim = 1, colours_act = c("#E69F00", "#56B4E9"), alpha_act = 0.9,
  lwd_act = 2
)


# Subsetting trajectories with four or more steps in the Mount Tom dataset
sbMountTom <- subset_track(MountTom, tracks = c(1, 2, 3, 4, 7, 8, 9, 13, 15, 16, 18))

# Example 5: Simulate tracks using data from Mount Tom
simulated_tracks_mt <- simulate_track(sbMountTom, nsim = 3)
#> Warning: `model` is NULL. Defaulting to 'Unconstrained'.

# Plot simulated tracks with default settings and actual tracks from Mount Tom

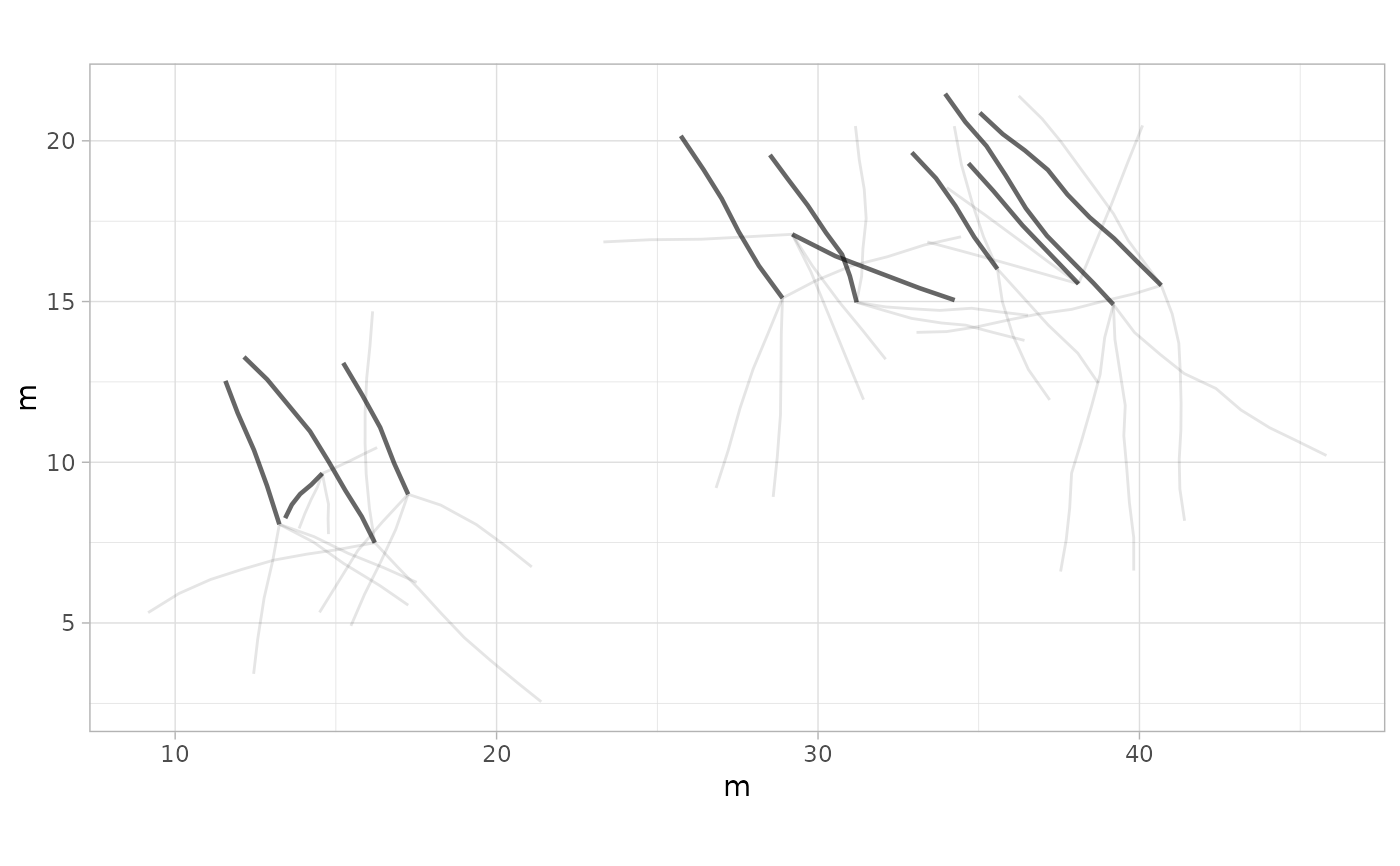

plot_sim(sbMountTom, simulated_tracks_mt)


# Example 6: Simulate tracks using the "Directed" model for Mount Tom
simulated_tracks_mt_directed <- simulate_track(sbMountTom, nsim = 3, model = "Directed")

# Plot simulated tracks with specific colors and transparency for "Directed" model for Mount
# Tom
plot_sim(sbMountTom, simulated_tracks_mt_directed, colours_sim = c(
  "#E69F00", "#56B4E9",
  "#009E73", "#F0E442", "#0072B2", "#D55E00", "#CC79A7", "#999999", "#F4A300",
  "#6C6C6C", "#1F77B4"
), alpha_sim = 0.3, lwd_sim = 1.5, alpha_act = 0.8, lwd_act = 2)


# Example 7: Simulate tracks using the "Constrained" model for Mount Tom
simulated_tracks_mt_constrained <- simulate_track(sbMountTom, nsim = 3, model = "Constrained")

# Plot simulated tracks with different color scheme and increased line width for "Constrained"
# model

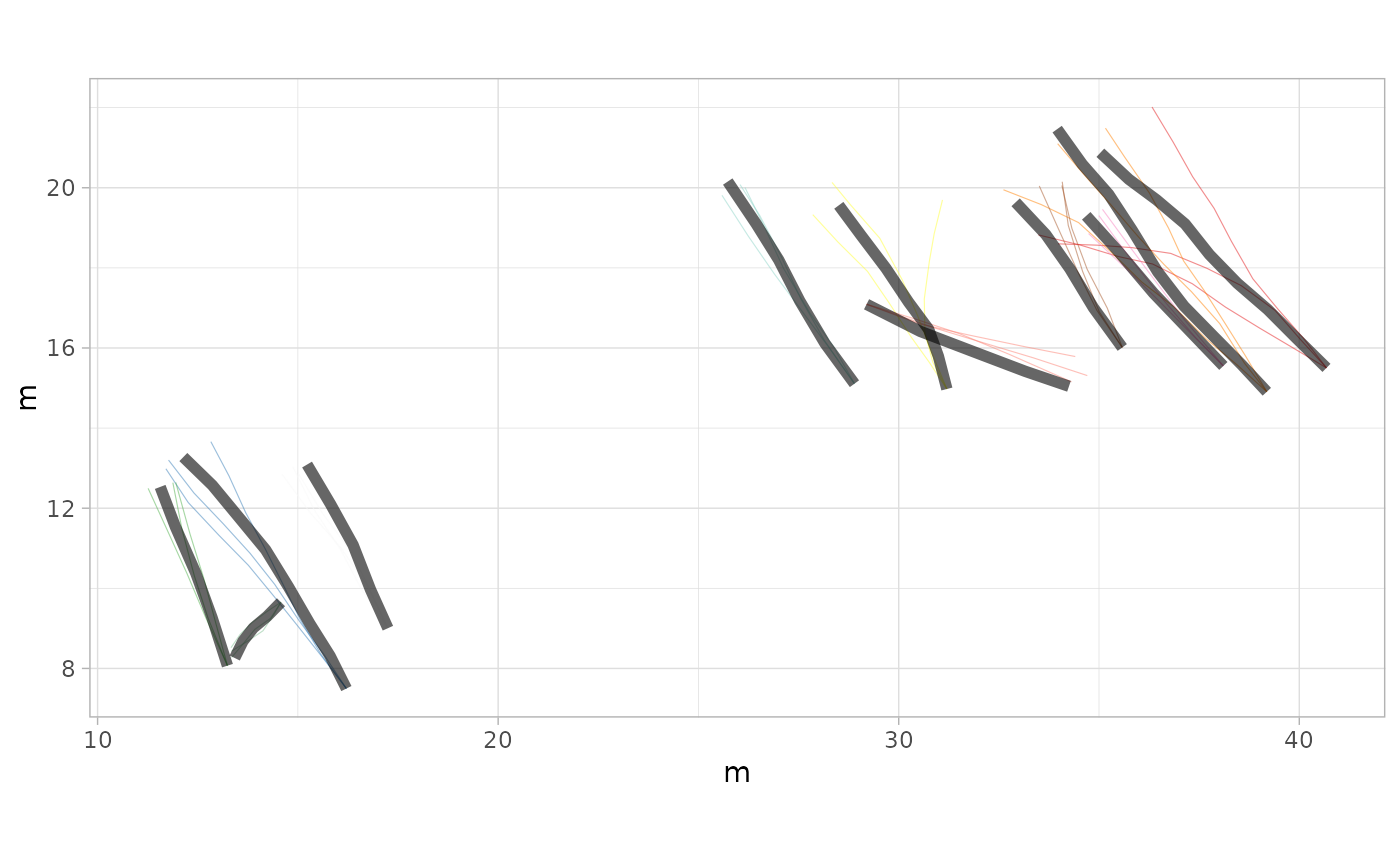

plot_sim(sbMountTom, simulated_tracks_mt_constrained, colours_sim = c(
  "#E41A1C", "#377EB8",
  "#4DAF4A", "#FF7F00", "#F781BF", "#A65628", "#FFFF33", "#8DD3C7", "#FB8072",
  "#80BF91", "#F7F7F7"
), alpha_sim = 0.5, lwd_sim = 0.2, alpha_act = 0.6, lwd_act = 2)


# Example 8: Simulate tracks using the "Unconstrained" model for Mount Tom
simulated_tracks_mt_unconstrained <- simulate_track(sbMountTom, nsim = 3, model = "Unconstrained")

# Plot simulated tracks with a different color scheme and transparency for "Unconstrained" model

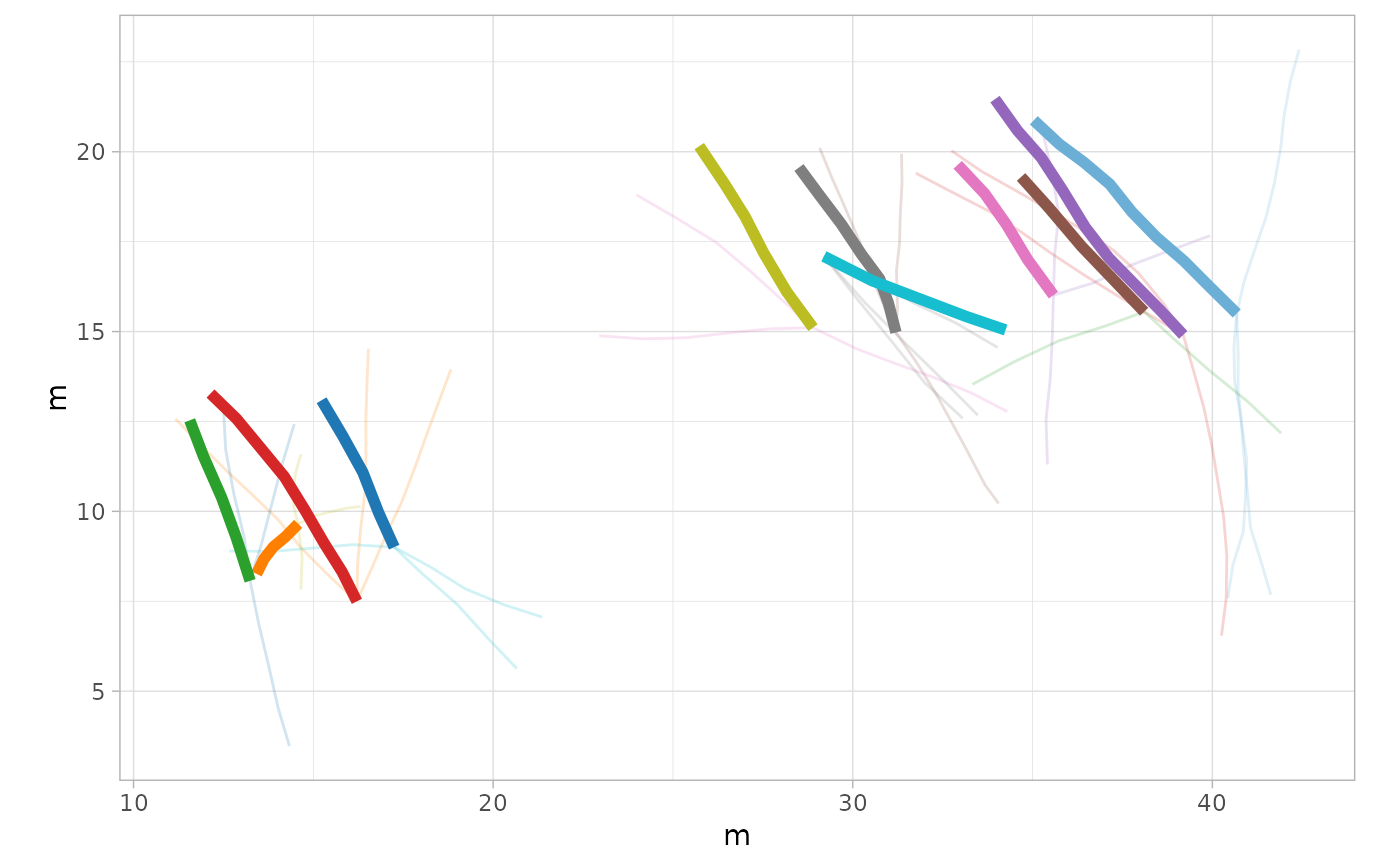

plot_sim(sbMountTom, simulated_tracks_mt_unconstrained, colours_sim = c(
